Abstract
BackgroundPapillary fibroelastoma (PFE) and myxoma are relatively common types of benign cardiac tumors. PFE and myxoma can be associated with fatal embolic events. However, PFE is not widely recognized within the field of cerebrovascular diseases.
Case DescriptionA 54-year-old male presented with a sudden onset of left hemiparesis. Three-dimensional computed tomography (CT) angiography revealed incomplete occlusion of the right middle cerebral artery. Thrombolytic therapy with recombinant tissue-type plasminogen activator was performed, followed by mechanical thrombectomy. Reperfusion was achieved within 199 minutes, resulting in thrombolysis in cerebral infarction grade 2b. The retrieved emboli appeared as a white gelatinous substance, which was diagnosed as PFE by histopathological examination. Transesophageal echocardiography and cardiac CT identified a 6-mm mobile mass in the left atrium. PFE in the left atrium was considered to be the source of the embolism and tumor resection was performed on day 18. Histopathological findings of the resected tumor were identical to those of the emboli. The patient was transferred to a rehabilitation facility on day 36, with a modified Rankin Scale score of 2.
ConclusionPFE and myxoma share many clinical features, but PFE tends to be smaller, so detection is more challenging and has likely resulted in under-recognition. PFE and myxoma can be associated with fatal embolic events. Resection is recommended for left-sided, mobile, symptomatic tumors larger than 10 mm. The differential diagnosis of embolus retrieved through mechanical thrombectomy should consider both myxoma and PFE and persistent efforts should be made to detect the embolic origin.
Keywords: Cardiac myxoma, Cardiac papillary fibroelastoma, Cerebral tumor embolism, Mechanical thrombectomy
INTRODUCTION
Papillary fibroelastoma (PFE) and myxoma are relatively common types of benign cardiac tumors.[
CASE REPORT
Patient information
A 54-year-old male delivery worker employed by a transportation company experienced a sudden onset of left hemiparesis while at work. He presented to our emergency department 101 min after symptom onset.
Clinical findings
On arrival, he exhibited severe left hemiparesis, dysarthria, and left hemispatial neglect, with a National Institutes of Health Stroke Scale score of 11. He had no prior medical history. Noncontrast computed tomography (CT) revealed early ischemic changes in the right frontal operculum, temporal operculum, and insular cortex, with an Alberta Stroke Program Early CT Score of 7 [
Figure 1:
(a-d) Prethrombectomy images. Noncontrast computed tomography (CT) reveals early ischemic changes in the right frontal operculum, temporal operculum, and insular cortex (a). Three-dimensional CT angiography shows contrast defects at two sites: the right distal M1 segment and the distal M2 segment of the lower trunk, indicated by arrows in (b). Contrast-enhanced CT of the chest reveals no clearly visualized intracardiac thrombi or cardiac tumors (c). Cerebral angiography (left: anteroposterior view; right: lateral view) shows poor contrast at several sites: The distal M1 and the distal M2 segments of the lower trunk of the right middle cerebral artery (MCA), and the right anterior temporal artery, indicated by arrows in (d). (e) Two emboli were retrieved with a stent retriever, corresponding to the contrast defects of MCA. One of them has broken away from the tip of the stent retriever. They appear white and gelatinous. (f and g) Postthrombectomy images. Cerebral angiography (left: anteroposterior view; right: lateral view) shows distal embolization in the frontopolar artery, the posterior parietal artery, and angular artery (indicated by arrows), with reperfusion achieving thrombolysis in cerebral infarction grade 2b (f). Diffusion-weighted magnetic resonance imaging shows high-signal intensity areas in the right frontal operculum, temporal operculum, insular cortex, medial frontal gyrus, cingulate gyrus, putamen, and corona radiata (g).
Diagnosis assessment
The etiology of the embolism could not be determined, but embolic occlusion of the right MCA was suspected.
Therapeutic intervention
Recombinant tissue-type plasminogen activator was administered intravenously at a dose of 0.6 mg/kg, followed by mechanical thrombectomy. Cerebral angiography identified two sites with contrast-filling defects in the distal M1 and the distal M2 segments of the lower trunk of the right MCA. The right anterior temporal artery originating from the M1 segment was also poorly visualized [
Follow-up: Posttreatment evaluation of the embolic source was conducted together with rehabilitation. The retrieved emboli appeared as a white gelatinous substance atypical of conventional thrombi [
Figure 2:
Histopathological examination of the emboli (a: Hematoxylin and Eosin staining, 2x, b: Elastica and Masson staining, 4x). (a) The lesion has a papillary structure. Each papilla contains a poorly vascularized, eosinophilic myxomatous stroma. A single layer of endothelial cells lines the surface. Myxoma cells were not observed. (b) Collagen fibers are observed. The elastic fibers are not evident.
Figure 3:
(a) Electrocardiography-synchronized computed tomography shows a 6-mm mass within the left atrium (indicated by an arrow). (b) Transesophageal echocardiography shows mobility of the mass in the left atrium (indicated by an arrow). (c) Intraoperative findings during open thoracotomy for tumor resection show a gelatinous mass in the superior wall of the left atrium (indicated by an arrow).
Figure 4:
Histopathological examination of the resected tumor (a: Hematoxylin and Eosin staining, 2x, b: Elastica and Masson staining 4x). The lesion was excised along with the myocardium (indicated by arrows) and the endocardium (indicated by arrowheads). The histological features of the tumor are consistent with those of the emboli.
DISCUSSION
Cardiogenic or atherosclerotic thrombi cause most cases of cerebral embolism.[
PFE is a benign cardiac tumor first described by Cheitlin et al. in 1975.[

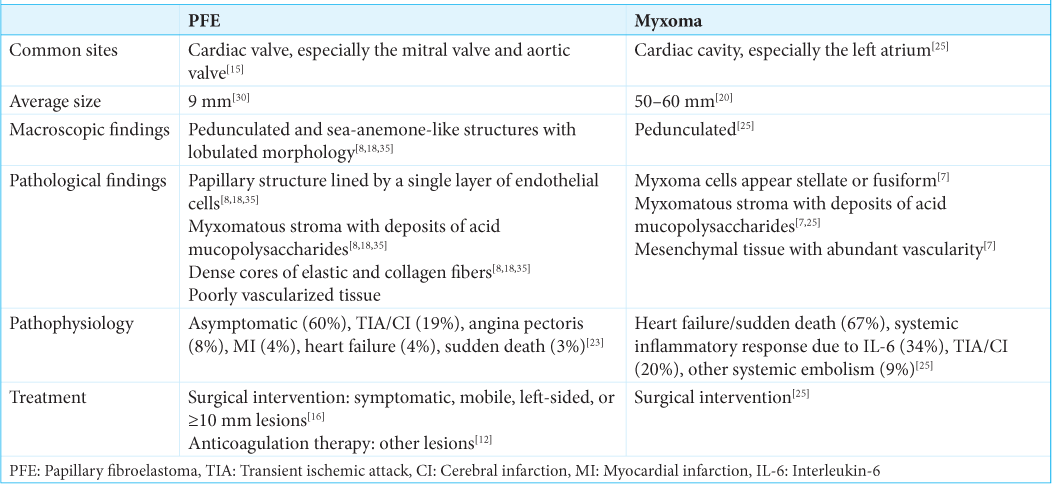

Cardiac tumors, exemplified by myxomas, are widely recognized as causes of cerebral embolism. However, the increasing detection rates of cardiac tumors indicate that PFE is also a significant cause of cerebral tumor embolism. A study reviewing 37 cases of cerebral tumor embolism treated with thrombectomy reported that 17 cases (45%) were of cardiac origin, including 11 myxomas (29.7%) and 6 PFEs (16.2%).[
An important point to note in this case is distal embolization. Although distal embolization is common as a technical complication of thrombectomy, the distal embolization in this case may be attributed to the nature of the embolus. Distal embolization typically occurs due to thrombus fragmentation and embolic migration during retrieval.[
In the present case, the macroscopic findings of the retrieved emboli raised the suspicion of a cardiac tumor. Subsequent imaging identified a cardiac lesion, which was surgically resected as the embolic source. Pathological examination confirmed the histopathological identity between the retrieved emboli and the resected tumor tissue, establishing the diagnosis of cerebral tumor embolism caused by cardiac PFE. Only one previous similar case of PFE manifesting as cerebral tumor embolism identified the embolic source by imaging, and surgical resection was performed.[
CONCLUSION
The present case of PFE manifesting as cerebral embolism was treated with mechanical thrombectomy. The differential diagnosis based on the retrieved embolus should consider not only myxoma but also PFE. PFE is smaller and more challenging to detect compared to myxoma but carries a similar risk of fatal embolic events. Therefore, persistent efforts to detect PFE are essential.
Ethical approval
Institutional Review Board approval is not required.
Declaration of patient consent
The authors certify that they have obtained all appropriate patient consent.
Financial support and sponsorship
Nil.
Conflicts of interest
There are no conflicts of interest.
Use of artificial intelligence (AI)-assisted technology for manuscript preparation
The authors confirm that there was no use of artificial intelligence (AI)-assisted technology for assisting in the writing or editing of the manuscript and no images were manipulated using AI.
Disclaimer
The views and opinions expressed in this article are those of the authors and do not necessarily reflect the official policy or position of the Journal or its management. The information contained in this article should not be considered to be medical advice; patients should consult their own physicians for advice as to their specific medical needs.
