Abstract

BackgroundGlioependymal cysts are rare lesions, especially in children.

Case DescriptionThe authors treated a well-developed 12-year-old male who presented with 1 week of acute-onset headache. Magnetic resonance imaging revealed a thin-walled third ventricular cyst obstructing the foramen of Monro. Endoscopic fenestration of the cyst with biopsy and endoscopic third ventriculostomy was performed. Histopathologic examination revealed a glioependymal cyst. At 13-month follow-up, the patient is asymptomatic without evidence of recurrence.

ConclusionThis case represents the first glioependymal cyst reported in an adolescent.

Keywords: Endoscopic third ventriculostomy, Glioependymal cyst, Intracranial cyst, Neuroepithelial cyst, Third ventricle

INTRODUCTION

Glioependymal cysts are exceedingly rare lesions, also referred to as neuroglial or neuroepithelial cysts. Glioependymal cysts represent only 1% of all non-neoplastic intracranial cysts yet are known to grow and expand rapidly, resembling a neoplastic process. Glioependymal cysts most frequently arise in the subarachnoid space of the frontal lobes in the 4^th to 5^th decade of life with a female predominance but have been infrequently reported in young children with a male predominance.[ 10 , 16 , 25 ] They are lined by an innermost single layer of secretory cuboidal epithelium with surrounding glial and connective tissue and may expand, becoming rapidly symptomatic.[ 10 ] Depending on their location, they can cause headaches, macrocephalus, seizures, motor deficits, or altered sensorium.[ 25 ] Neurosurgical management consists of neuroendoscopic cyst fenestration, complete resection through craniotomy, or shunting.[ 1 ] To the author’s knowledge, this is the first report of a symptomatic glioependymal cyst in an adolescent.

ILLUSTRATIVE CASE

The authors treated a well-developed 12-year-old Hispanic male who presented to our institution with an acute-onset severe worsening headache for 1 week with associated lethargy, nausea, and vomiting. Initial workup with computed tomography (CT) head demonstrated marked ventriculomegaly of the lateral and third ventricles. Further evaluation with magnetic resonance imaging (MRI) demonstrated a thin-walled cyst within the third ventricle obstructing the foramen of Monro [ Figure 1 ]. The cyst was isointense to the cerebrospinal fluid (CSF) on all sequences. In discussion with the patient’s family, the decision to perform neuro endoscopic cyst fenestration and endoscopic third ventriculostomy (ETV) was made. An ETV was desired in this case for several reasons. First, the MRI demonstrated favorable anatomy (enlarged ventricles and generous third ventricular floor) for the performance of an ETV. The calculated ETV success score was 90%.[ 15 ] In addition, due to the symptomatic obstructive hydrocephalus, long-term management of CSF diversion was desired, which could be performed in the same endoscopic procedure. A successful ETV obviated the need for craniotomy, reoperation, or placement of potentially obstructable external hardware, namely, cysto-peritoneal or cysto-subarachnoid shunt.

Figure 1:

(a) Preoperative sagittal T2-weighted magnetic resonance (MR) imaging obtained in the patient demonstrating a cyst that is isointense to cerebrospinal fluid within the third ventricle, causing dilation of the lateral ventricles. (b) Postoperative sagittal T2-weighted MR imaging demonstrating cyst resolution. (c) Axial preoperative view. (d) Axial postoperative view.

Neuroendoscopic fenestration was performed through a frontal burr hole into the right anterior horn of the lateral ventricle. On entering the ventricular space with the endoscope, a smooth cyst was immediately visible through the foramen of Monro [ Figure 2 ]. The cyst wall was fenestrated several times using a Synergy^® Axiem^™ neuronavigation stylet (Medtronic Navigation, Inc, Louisville, CO). The cyst was filled with clear, colorless fluid. Several samples of the cyst wall were taken for histopathologic diagnosis. Following cyst fenestration, the third ventricle was entered through the dilated foramen of Monro. The ETV was performed without complication or external ventricular drain placement. Pathologic examination of the cyst wall by light microscopy suggested a glioependymal cyst [ Figure 3 ]. Immunohistochemical staining performed at two institutions revealed that the samples stained positive for glial fibrillary acidic protein.

Figure 2:

Intraventricular endoscopic view of the glioependymal cyst membrane through foramen of Monro.

Figure 3:

(Left) Light microscopy of cyst wall by hematoxylin and eosin staining demonstrating minute fragments of neuroepithelial tissue without significant presence of intact innermost cuboidal cell lining. (Right) Immunohistochemical staining for glial fibrillary acidic protein highlighting the diffuse distribution of glial cells. Samples did not stain positive for neuronal markers (NeuN and Synaptophysin).

Following neuroendoscopic cyst fenestration and ETV, the patient’s headache resolved completely, and postoperative MRI showed cyst resolution. The patient has been symptom-free since the most recent follow-up 13 months after the procedure. Monitoring with MRI is planned for 24 months after the procedure to monitor for recurrence.

DISCUSSION

This case is the first report of a glioependymal cyst in an adolescent, as previously reported pediatric glioependymal cysts involved neonates to children 7 years of age [ Table 1 ].

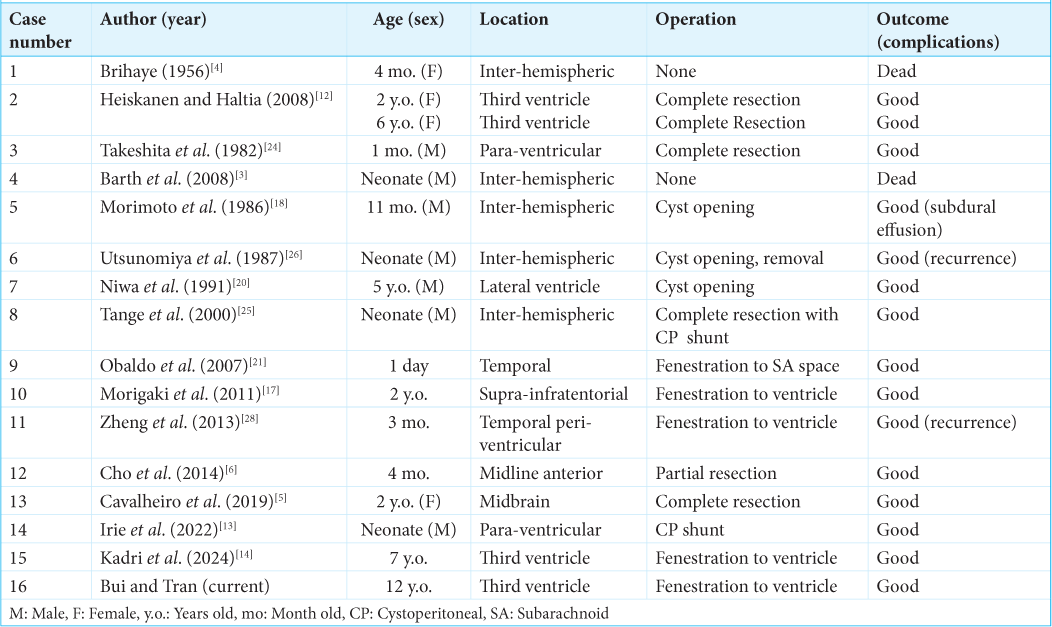

Table 1:

Previously reported pediatric glioependymal cysts in the literature.

A systematic review by Robles et al. suggested an updated histopathologic classification of intracranial cysts.[ 23 ] According to their classification, glioependymal cysts are considered a subtype of neuroepithelial cysts, including ependymal cysts and choroid plexus cysts, also derived from neuroepithelium. Before this update, glioependymal cysts have interchangeably been diagnosed as neuroglial and neuroepithelial cysts. However, the authors agree with using the term glioependymal cyst to describe these lesions to avoid confusion. The major histologic difference between glioependymal cysts and the more common ependymal cysts is intervening glial tissue in the former.

Case reports of glioependymal cysts in children describe a rapidly growing cyst from active ependymal secretion, ependymal proliferation, and symptoms related to mass effect.[ 28 ] The cyst expansion may be pronounced. Morigaki et al. reported a giant pediatric glioependymal cyst involving both the anterior and posterior fossa.[ 19 ] Children with glioependymal cysts most frequently present with macrocephaly, seizures, and motor deficits.[ 25 ] In addition, most pediatric glioependymal cysts are located interhemispheric, while intraventricular glioependymal cysts are extremely rare.[ 12 ] Our patient did not have motor deficits or seizures but presented with signs of increased intracranial pressure. Tange et al. observed that glioependymal cysts in infants were associated with other central nervous system abnormalities, including complete or partial agenesis of the corpus callosum or microgyria.[ 25 ] Non-enhancing thin-walled cysts, in combination with agenesis of the corpus callosum, have been suggested as sufficient for the diagnosis without necessitating histopathologic confirmation.[ 19 ] Yet, no sensitivity or specificity of these two radiographic findings has been reported. Our patient presented with an intraventricular glioependymal cyst within the third ventricle and a normally developed corpus callosum. Due to the location and likely slow growth of the glioependymal cyst in our patient, he presented acutely with symptoms of obstructive hydrocephalus in adolescence. We believe that our patient became symptomatic much later than previously reported pediatric glioependymal cysts due to the scarcity of secretory ependymal-like cells seen by light microscopy [ Figure 2 ].

Friede and Yasargil were the first to describe adult glioependymal cysts in detail using electron microscopy.[ 10 ] In their model, a short segment of the wall becomes displaced during embryonic development into the cerebral parenchyma or the subarachnoid space from the ectopic rests of the neural tube near the site of the developing tela choroidea. They may arise anywhere in the neuraxis, accounting for both intracerebral and subarachnoid glioependymal cysts, those located in the posterior fossa or ambient cistern [ 9 , 10 ], and within nerves and the spinal cord.[ 2 , 21 ] Postoperative magnetic resonance (MR) ventriculocisternography has been utilized in one case of a pediatric glioependymal cyst, providing further evidence that the tela choroidea is the most likely site of origin.[ 17 ] The secretory highly ciliated ependyma lining glioependymal cysts does not resemble the ventricular ependyma, providing evidence against the theory that these lesions arise as outpouchings of the ventricular wall.[ 10 ] The secretory cellular structure explains the phenomenon of unexpected and rapid expansion. Our patient’s case and other cases of third ventricular glioependymal cysts support the tela choroidea as the origin for glioependymal cysts due to proximity.[ 17 ] Furthermore, if the cysts are causing mass effects or deficits and patients need surgery for cyst fenestration, we recommend that intracranial cyst walls be biopsied and sent to pathology due to the risk of secretory ependymal-like cells increasing the risk of cyst recurrence.

These cysts have been known to recur in children and adults. Zheng et al. reported a glioependymal cyst in a 3-month-old treated with partial resection due to cyst wall attachment to the thalamus and internal capsule that subsequently recurred.[ 28 ] Frazier et al. also reported a glioependymal cyst in a woman requiring reoperation and advocated for craniotomy as the primary management of these lesions to reduce the risk of recurrence.[ 9 ] However, Alvarado et al. performed neuroendoscopic fenestration in three patients with glioependymal cysts and did not note a recurrence of the lesions with a median 16-month follow-up.[ 1 ] The factors influencing intra-cystic ependymal secretion, the difference between the speed of cystic expansion in children and adults, and the predominant sex discordance between adults and children remain to be elucidated. Due to the low but potential risk of recurrence, we plan to monitor our patient with periodic MRIs.

Imaging

CT imaging is insufficient to differentiate glioependymal cysts from infectious or neoplastic cysts.[ 11 ] On MRI, the wall of a glioependymal cyst does not enhance, and the fluid is isointense to CSF on T1-weighted imaging (T1WI) and T2-weighted imaging (T2WI). However, the cyst wall has been noted to enhance in a pediatric case.[ 25 ] On multiplanar imaging, glioependymal cysts can be differentiated from other cysts in communication with the subarachnoid or ventricular system.[ 11 ] The internal fluid may grossly appear identical to CSF, xanthochromic, or turbid milky due to the increased protein content.

Important to distinguish from glioependymal cysts on MRI are arachnoid cysts and epidermoid cysts, which are all isointense to CSF on T1WI and T2WI and do not enhance.[ 22 ] Arachnoid cysts may become symptomatic later in life but are extra-axial and confined to the subarachnoid space, whereas glioependymal cysts are intra-axial or in the subarachnoid space but do not communicate.[ 11 ] Epidermoid cysts can be distinguished on MR as diffusion-restricting on diffusion-weighted imaging and are heterogeneous on fluid-attenuated inversion recovery imaging. Colloid cysts are characteristically located at the foramen of Monro, which is possible for glioependymal cysts, as seen in our patient. However, colloid cysts attenuate on CT, unlike glioependymal cysts, which follow the CSF signal on CT. Choroid plexus cysts (xanthogranulomas) are enhanced on post-contrast imaging and are typically present bilaterally in the lateral ventricles with calcifications. Choroid plexus cysts do not cause symptoms even when very large, unlike glioependymal cysts. Virchow-Robin perivascular spaces may also be mistaken for glioependymal cysts but are most commonly multiple and located near the basal ganglia. Porencephalic cysts, which result from encephaloclastic processes, are also not to be mistaken for glioependymal cysts, as they communicate with the ventricle and never act as expanding lesions.[ 10 , 11 , 22 ]

Treatments

The surgical treatment for symptomatic glioependymal cysts is nearly identical to that of ependymal cysts or arachnoid cysts. Neurosurgical interventions have been described for glioependymal cysts, including neuro endoscopic fenestration to an adjacent CSF space: Cysto-ventricular, -subarachnoid, or -peritoneal shunting, and partial or complete excision.[ 1 , 9 , 17 ] A large series investigated neuroendoscopy for pediatric arachnoid cysts and described synchronous ETV performance in three patients presenting with concomitant hydrocephalus.[ 8 ] They concluded that this minimally invasive procedure was superior to open craniotomy due to low morbidity and mortality and less operative and recovery time. Open craniotomy with complete resection was once suggested as the most effective option where anatomically feasible due to the risk of recurrence.[ 9 , 16 ] However, reports from neuroendoscopic fenestration of glioependymal cysts with long-term follow-up have not demonstrated cyst recurrence or shunt requirement. Neuroendoscopic surgery has been reported successful for ependymal-lined cysts in children located intraventricularly or in eloquent areas such as the mesencephalon.[ 1 , 27 ] El Damaty et al. concluded that neuroendoscopic fenestration should be the treatment of choice for ependymal cysts to avoid craniotomy and shunt dependence.[ 7 ] The presence of acute hydrocephalus was noted to increase the facilitation of the procedure in our case. Neuroendoscopic fenestration with ETV utilized in our case proved successful without complication and avoided the placement of a shunt.

CONCLUSION

Glioependymal cysts are rare lesions in children. We report the first adolescent case of an intracranial glioependymal cyst. Neuroendoscopic cyst fenestration and endoscopic third ventriculostomy successfully avoided shunt placement and the patient recovered fully.

Ethical approval

The Institutional Review Board approval is not required.

Declaration of patient consent

The authors certify that they have obtained all appropriate patient consent.

Financial support and sponsorship

Nil.

Conflicts of interest

There are no conflicts of interest.

Use of artificial intelligence (AI)-assisted technology for manuscript preparation

The authors confirm that there was no use of artificial intelligence (AI)-assisted technology for assisting in the writing or editing of the manuscript and no images were manipulated using AI.

Disclaimer

The views and opinions expressed in this article are those of the authors and do not necessarily reflect the official policy or position of the Journal or its management. The information contained in this article should not be considered to be medical advice; patients should consult their own physicians for advice as to their specific medical needs.

References

1. Alvarado AM, Smith KA, Chamoun RB. Neuroendoscopic fenestration of glioependymal cysts to the ventricle: Report of 3 cases. J Neurosurg. 2018. 131: 1615-9

2. Balasubramaniam C, Balasubramaniam V, Santosh V. Intramedullary glioependymal cyst and tethered cord in an infant. Childs Nerv Syst. 2004. 20: 496-8

3. Barth PG, Uylings HB, Stam FC. Interhemispheral neuroepithelial (glio-ependymal) cysts, associated with agenesis of the corpus callosum and neocortical maldevelopment: A case study. Childs Brain. 2008. 11: 312-9

4. Brihaye J. Agenesis of the corpus callosum associated with an ependymal cyst. Sch Arch Neurol Psychiat. 1956. 77: 415-31

5. Cavalheiro S, Canullo ML, Costa MD, Dastoli PA, Nicácio JM, Stavale JN. Glioependymal cyst on the third cranial nerve: Case report. J Neurosurg Pediatr. 2019. 25: 178-82

6. Cho HJ, Kim HN, Kim KJ, Lee KS, Myung JK, Kim SK. Intracranial extracerebral glioneuronal heterotopia with adipose tissue and a glioependymal cyst: A case report and review of the literature. Korean J Pathol. 2014. 48: 254

7. El Damaty A, Marx S, Fleck S, Schroeder HW. Neuroendoscopic approach to intracranial ependymal cysts. World Neurosurg. 2017. 97: 383-9

8. El-Ghandour NM. Endoscopic treatment of intraparenchymal arachnoid cysts in children. J Neurosurg Pediatr. 2014. 14: 501-7

9. Frazier J, Garonzik I, Tihan T, Olivi A. Recurrent glioependymal cyst of the posterior fossa: An unusual entity containing mixed glial elements. Case report. J Neurooncol. 2004. 68: 13-7

10. Friede RL, Yasargil MG. Supratentorial intracerebral epithelial (ependymal) cysts: Review, case reports, and fine structure. J Neurol Neurosurg Psychiatry. 1977. 40: 127-37

11. Guermazi A, Miaux Y, Majoulet JF, Lafitte F, Chiras J. Imaging findings of central nervous system neuroepithelial cysts. Eur Radiol. 1998. 8: 618-23

12. Heiskanen O, Haltia M. Neuroepithelial cysts of the third ventricle as a cause of hydrocephalus. Eur J Pediatr Surg. 2008. 34: 137-9

13. Irie K, Shimogawa T, Mukae N, Kuga D, Iwaki T, Mizoguchi M. Combined neuroendoscopic cyst wall fenestration and cyst-peritoneal shunt in an infant with glioependymal cyst. Surg Neurol Int. 2022. 13: 102

14. Kadri H, Dughly M, Agha MS, Hamed G, Abouharb R, Mackieh R. Giant supra and retrosellar glioependymal cyst presenting with only precocious puberty. Clinical study and review of the literature. Int J Surg Case Rep. 2024. 116: 109360

15. Kulkarni AV, Drake JM, Kestle JR, Mallucci CL, Sgouros S, Constantini S. Predicting who will benefit from endoscopic third ventriculostomy compared with shunt insertion in childhood hydrocephalus using the ETV Success Score. J Neurosurg Pediatr. 2010. 6: 310-5

16. Lustgarten V, Papanastassiou BM. Benign intracerebral cysts with ependymal lining: Pathological and radiological features. Br J Neurosurg. 1997. 11: 393-7

17. Morigaki R, Shinno K, Pooh KH, Nakagawa Y. Giant glioependymal cyst in an infant. J Neurosurg Pediatr. 2011. 7: 175-8

18. Morimoto T, Kaneko M, Nishikawa R, Ono T, Basugi N. Ependymal cyst--case report. No Shinkei Geka. 1986. 14: 351-6

19. Mustapha O, Allali N, Latifa C, Haddad SE. Epilepsy as a presentation of a neuroglial cyst associated with dysgenesis of corpus callosum in a child. Case Rep Radiol. 2021. 2021: 6675071

20. Niwa J, Okuyama T, Shimizu K, Hirai H. Glio-ependymal cyst in the lateral ventricle complicated by agenesis of the corpus callosum. No Shinkei Geka. 1991. 19: 359-63

21. Obaldo RE, Shao L, Lowe LH. Congenital glioependymal cyst presenting with severe proptosis. AJNR Am J Neuroradiol. 2007. 28: 999-1000

22. Osborn AG, Preece MT. Intracranial cysts: Radiologic-pathologic correlation and imaging approach. Radiology. 2006. 239: 650-64

23. Robles LA, Paez JM, Ayala D, Boleaga-Duran B. Intracranial glioependymal (neuroglial) cysts: A systematic review. Acta Neurochir. 2018. 160: 1439-49

24. Takeshita M, Miyazaki T, Kubo O, Kagawa M, Saito Y, Kitamura K. Paraventricular cerebral cyst in an infant. Surg Neurol. 1982. 17: 123-6

25. Tange Y, Aoki A, Mori K, Niijima S, Maeda M. Interhemispheric glioependymal cyst associated with agenesis of the corpus callosum. Neurol Med Chir. 2000. 40: 536-42

26. Utsunomiya H, Hayashi T, Honda E, Hashimoto T, Nakamura Y. A case of interhemispheric glio-ependymal cyst in a newborn infant. No Shinkei Geka. 1987. 15: 771-6

27. van Lindert E, Hopf N, Perneczky A. Endoscopic treatment of mesencephalic ependymal cysts: Technical case report. Neurosurgery. 1998. 43: 1234

28. Zheng SP, Ju Y, You C. Glioependymal cyst in children: A case report. Clin Neurol Neurosurg. 2013. 115: 2288-90
